 | 技術規(guī)格書 | Doc.No.： | |||||||||||||||||||

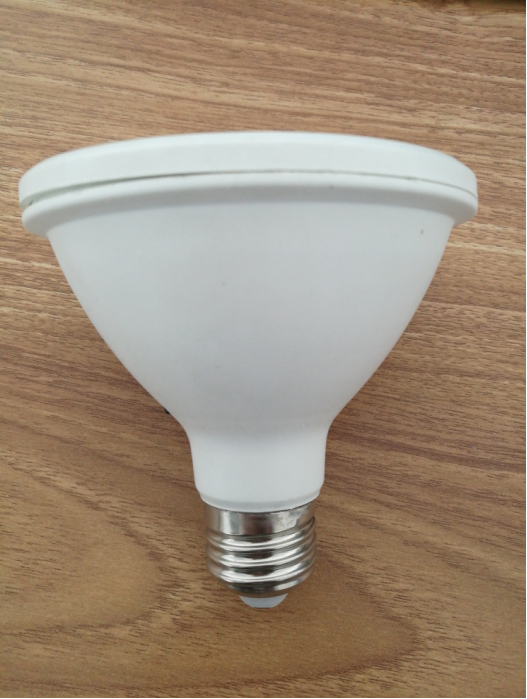

| Par30燈/11W/3000K/E27/100-250V/塑包鋁/12SMD/PF0.9/IC/950LM/RA80/過EMC/過巴西認證/LUZ | 編制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2頁(Page) | ||||||||||||||||||||
| 成品編碼 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本規(guī)格 General specifications | ||||||||||||||||||||
| 單位 | 指 標 Value | ||||||||||||||||||||
| 1> | 產品類型 Product type | / | Par30-11W | ||||||||||||||||||
| 2> | 發(fā)光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全標準 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 調光非調光 Dimmable or non_dimmable | / | 非調光 | ||||||||||||||||||
| 5> | 燈頭材料 Base Material | E27 | / | 鋁鍍鎳 | |||||||||||||||||
| 6> | 泡殼材料 Bubble Material | / | PC+鋁 | ||||||||||||||||||
| 2 | 光電參數 Performance Parameters | Unit | 最小Min | 額定Spec | 最大Max | 測試條件(Test Condition) | |||||||||||||||
| 1> | 電源電壓 Supply Voltage | Vrms | 100 | 220 | 250 | 額定電壓下，25±2℃，燈頭向上，點亮1小時穩(wěn)定后測試 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (燈珠焊盤溫度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 電源頻率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 輸入電流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 輸入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因數 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作頻率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 顯色指數 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均壽命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 電磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 產品外形尺寸 Product figure and dimension | 單位 | 指 標 Value | ||||||||||||||||||
| Unit | 最小Min | 額定Spec | 最大Max | 備注 | |||||||||||||||||
| 1> | 燈總長Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 燈總寬Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡殼外徑 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本號 | 修改日期 | 修改理由 | 設計 | 審核 | 會簽 | 審批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
